Upper Appendicular Skeleton

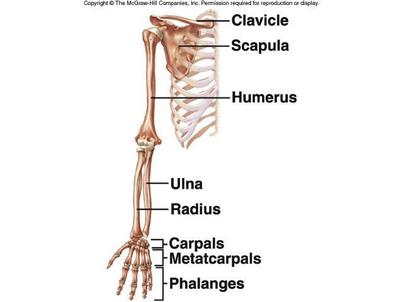

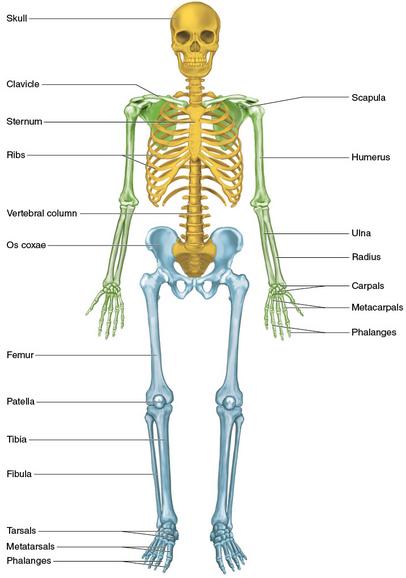

                  Appendicular Skeleton

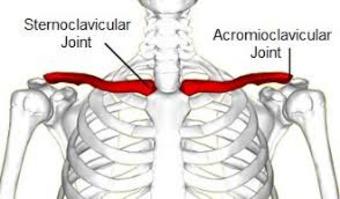

 Clavicle:
​
 acromial end  (lateral end)
    acromial end articulates with the _____ of the scapula.
 sternal end  (medial end)
    sternal end articulates with the  _____of the sternum.
















​

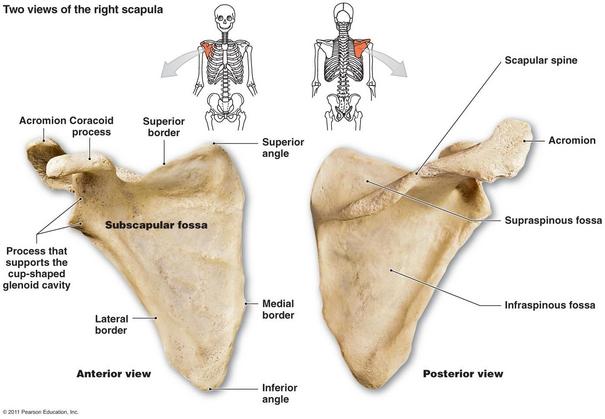

 Scapula:

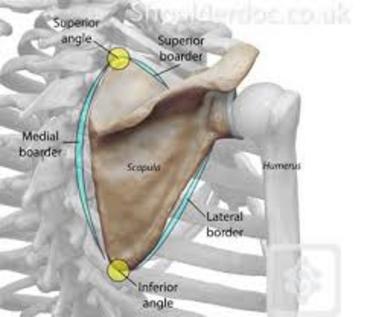

 borders:
     lateral, medial, superior
 angles:
     superior & inferior
 spine
 acromion
 coracoid process
 glenoid cavity



















​



​
​

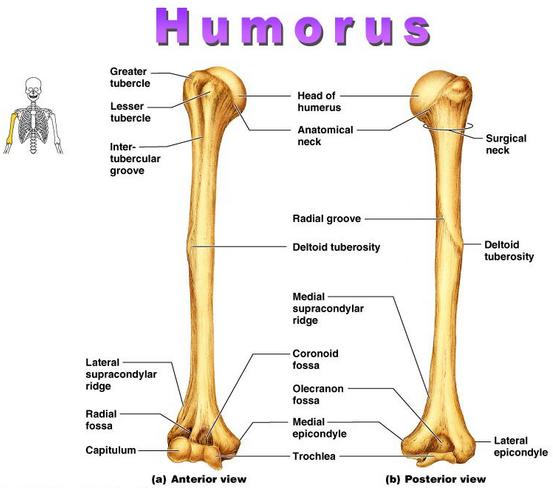

 Humerus:

 head & surgical neck
         head of humerus articulates
​         with the _____ of the scapula.
 deltoid tuberosity
 trochlea
 capitulum
 olecranon fossa
 coronoid fossa








​

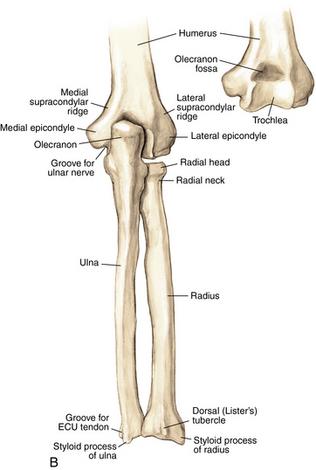

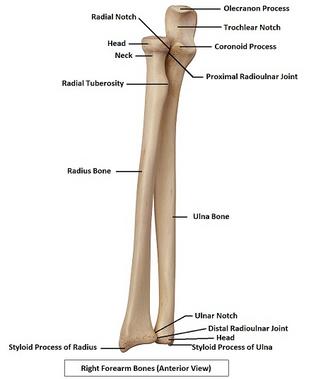

 Forearm



Radius:
   head
   radial tuberosity
   styloid process
   ulnar notch









​ Ulna
  coronoid process
  olecranon process
  trochlear notch
  radial notch
​  styloid process
​
















​

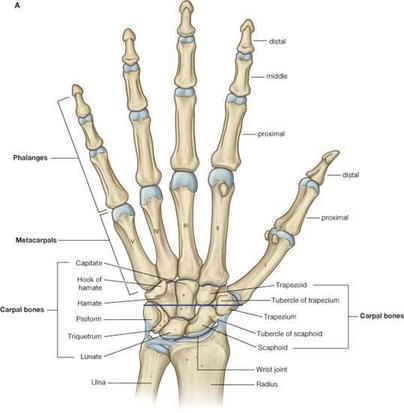

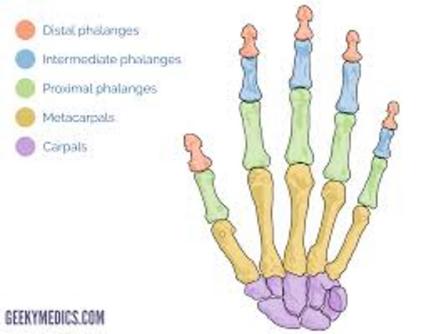

​Hand:
 8 Carpal (wrist) Bones:
 5 Metacarpal (hand)bones
 14 Phalanges (fingers) proximal, middle, distal




































​











​

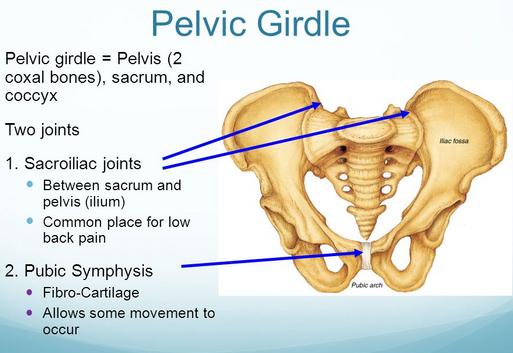

The Pelvic (Hip) Girdle:

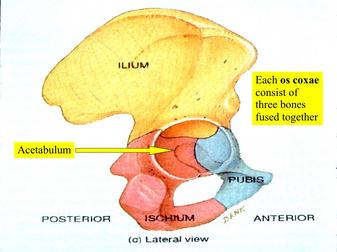

Coxal Bone = fusion of 3 bony pieces:
      ilium, ischium and pubis.
 Pelvic girdle  =
      R & L coxal bones + sacrum + coccyx
 Pubic symphysis =
      cartilaginous joint between
​       L & R pubic bones
 Sacroiliac joints


​

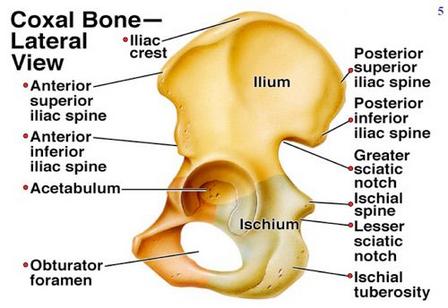

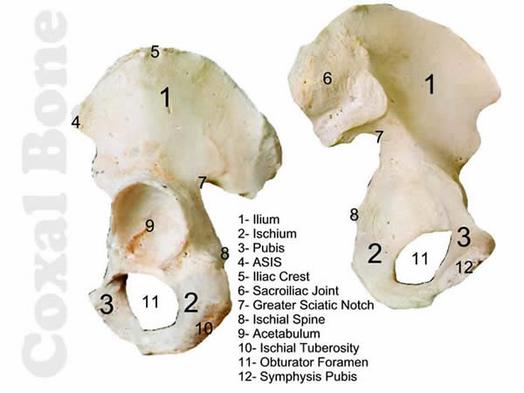

​Coxal Bone Landmarks
     acetabulum
     obturator foramen

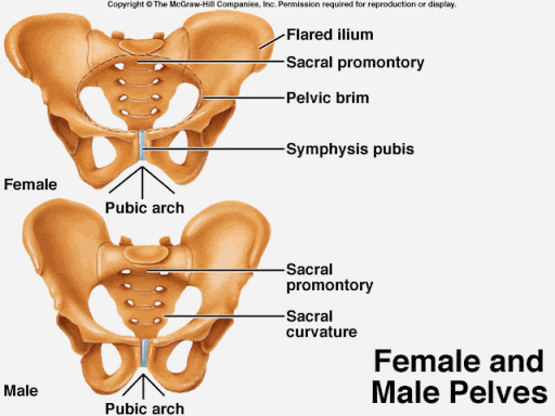

Anatomical differences between the M/F pelvis














​

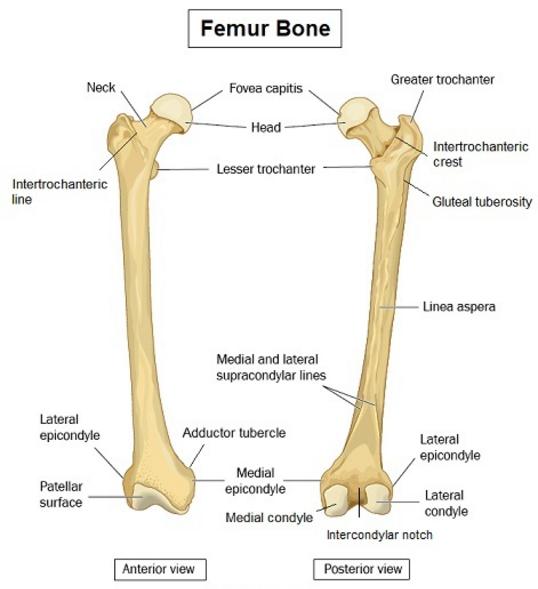

​ Femur:
  greater trochanter
  head & neck
  medial & lateral condyles
  patellar surface











​
 The Lower Leg:

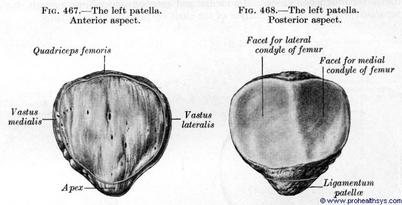

 Patella:
    apex

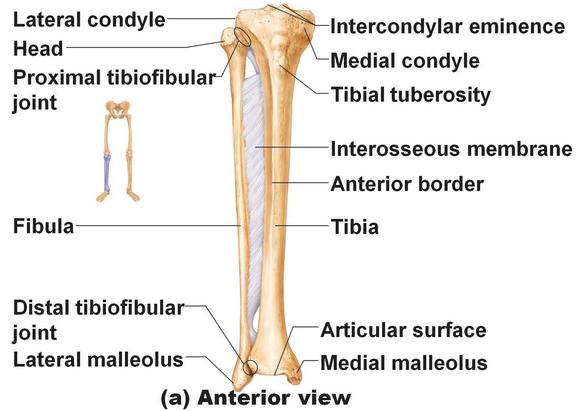

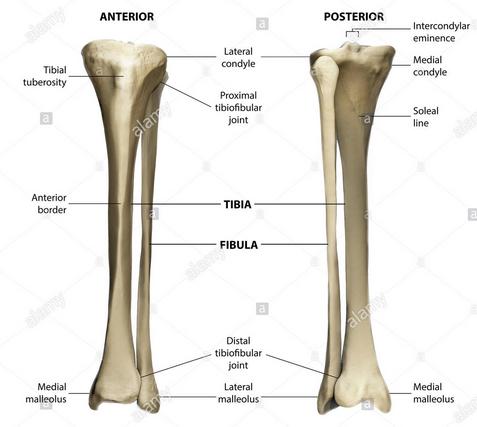

​Tibia:
   tibial tuberosity
   medial & lateral condyles
   medial malleolus

 Fibula:
  head
  lateral malleolus




















​

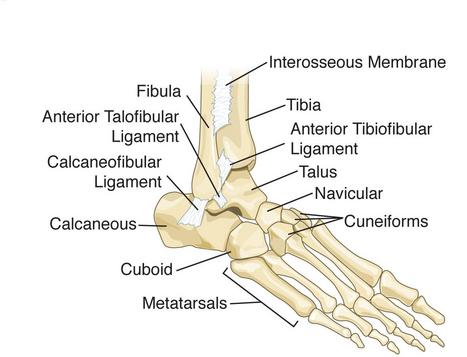

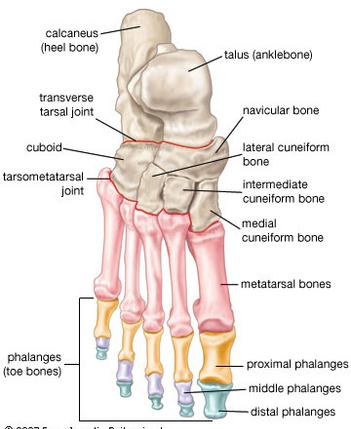

Foot:
    7 tarsal (ankle) bones
    5 metatarsals (foot)
   14 phalanges (toe) distal, middle, proximal

















 Articulations (joints)
​         & Body Movements

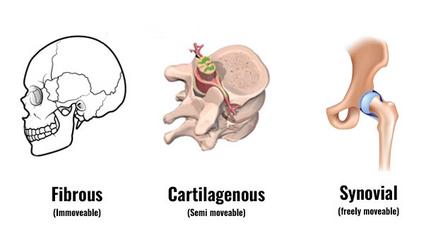

​ Classification of joint based on Structure of Joint:
  Fibrous joint:
      bones joined by dense connective tissue = sutures







Cartilaginous joint:
      bones are joined by cartilage =
          pubic symphysis, ribs to sternum







​  Synovial  joint:
      bone ends are enclosed in a joint capsule
     (knee, hip, elbow, fingers)

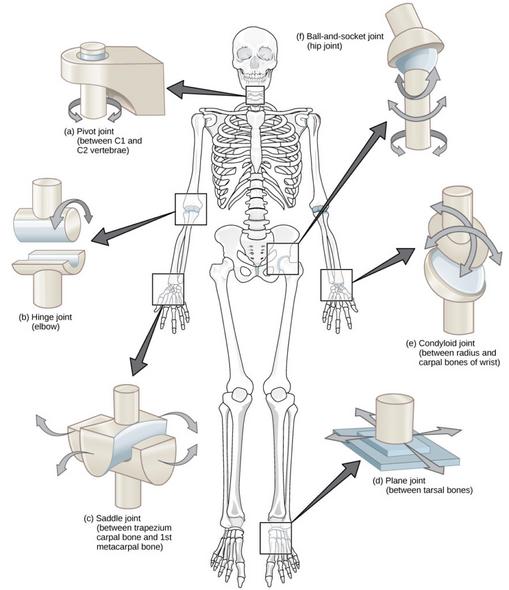

  Types of Synovial Joints:
  Plane joint
  Hinge joint
  Pivot joint
  Ball & socket joint
  Saddle joint

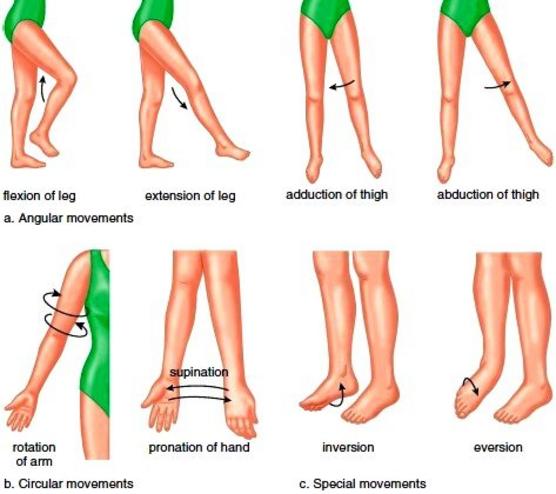

​  Movements at Synovial Joints
  Flexion / Extension / Hyperextension
  Circumduction
  Rotation
  Adduction/Abduction
  Pronation / Supination  (forearm & wrist)















​

  A joint “sprain” is when the ligaments are stretched       or torn.   Common sprains occur in the ankle.

  A joint “dislocation” is when the ends of the bones           in a joint are forced from their normal positions. Dislocation is most common in shoulders and fingers.​

Lower
​Appendicular Skeleton
