the nerve  impulse

types of
​propagation:

1. continuous via unmyelinated axons
2. saltatory via myelinated axons

review question:

do electrical synapses employ neurotransmitters? explain.

1. ECF = extracellular fluid
    ICF = intracellular fluid
     ECF and ICF have different composition of ions:
              ECF has high Na+ and Cl-
              ICF has high K+ and (-) charged proteins

2. plasma membranes are selectively permeable...
             ions must move across via ion channels.
             proteins can't cross the membrane

​3. the difference in charge inside vs outside the membrane
    is considered potential energy.

​4. voltage is the measurement of this potential energy.
    we use millivolts (mV) to quantify this membrane's                      potential energy

5. a membrane potential is the difference in voltage between the inside and outside of a cell's membrane.

neurotransmitters
relaying an action potential

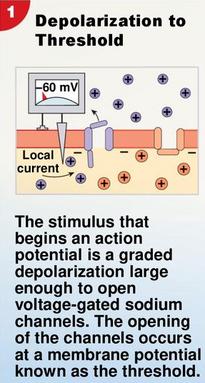

​ 1. a stimulus initiates a rapid change in voltage.

some background first...

neurotransmitter imbalances

an ionotropic receptor is a membrane protein that responds to ligand binding by allowing ions to move across the membrane through an open ion channel.

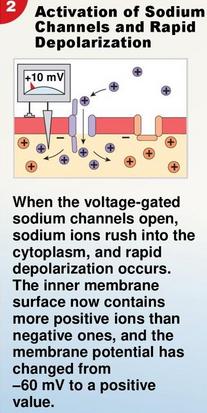

​  2. depolarization is caused by a the opening of sodium           channels causing an influx of Na+ ions.
      threshold is reached.

review question:

explain how an action potential is propagated.

review question:

explain the process by which a chemical synapse relays an action potential to an adjacent cell.

electrical synapses are electrical and mechanical connections between two neurons ​found at a gap junction.
An electrical synapse has channel proteins between pre/postsynaptic neurons connecting the two neurons so the electrical signal can travel straight over the synapse.
Found in the retina, the brain, the olfactory bulb and other areas of the CNS.

the rest of this subpage is cool stuff but not required: extra credit...

review question:

how does a stronger stimulus differ from a weaker stimulus?

now let's factor in the ions.
their movement shifts the polarity...the charge

inside cell

outside cell

continu0us
​propagation along
an unmyelinated axon travels
​1 meter/sec (2 mph)

so what starts an action potential?

3. restoring the normal resting potential after depolarization is called ​repolarization

ions move across the membrane via
voltage gated channels

   biogenic amines

 nicotinic vs muscarinic cholinergic receptors

 current = ​a measurement of ions crossing the membrane

nicotinic receptors are found at cholinergic synapses in the CNS, at parasympathetic and sympathetic autonomic ganglia, and at the neuromuscular junction.

 nicotinic                         muscarinic

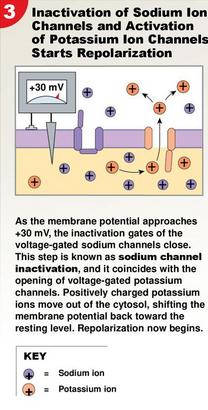

​  3. repolarization results from Na+ channel closing and a large efflux         of potassium (K+) ions from activated K+ channels.

 the adrenal medulla is the core of the adrenal gland. it participates in the flight or fight response by secreting epinephrine (adrenaline) and norepinephrine (noradrenaline)

and there's a  chemical synapse

review question:

explain the difference between saltatory and continuous propagation.

neuropeptides

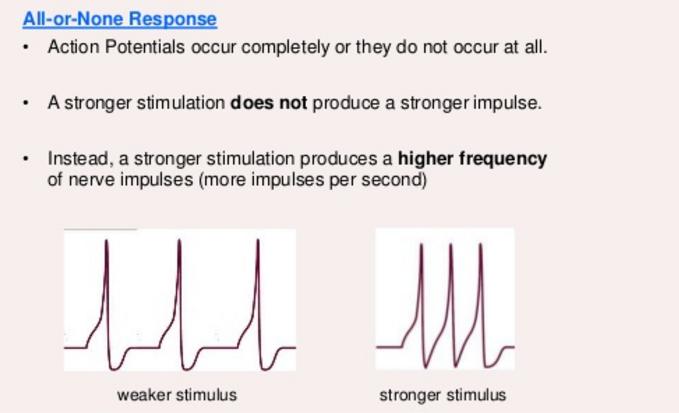

there's a threshold to begin a nerve impulse. it is an all or nothing response.

there's an
​electrical synapse

muscarinic receptors are metabotropic
(g-protein coupled receptors)
which trigger a series of intracellular events using second messengers.

a nerve impulse travels down a cell membrane
just like dominoes...

its all about the Na+ & K+ ​ions crossing the membrane...

neurotransmitter function: direct vs indirect effects

in a
​nutshell...

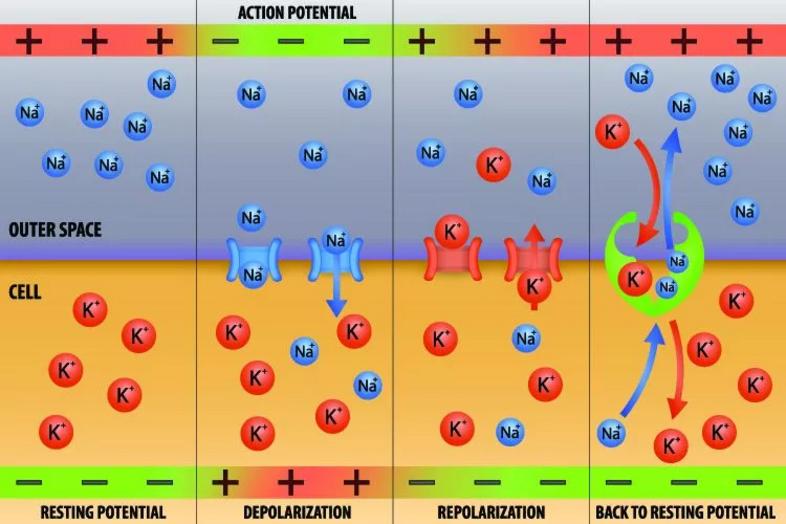

​ we start with a polarized (resting) cell

polarized = resting

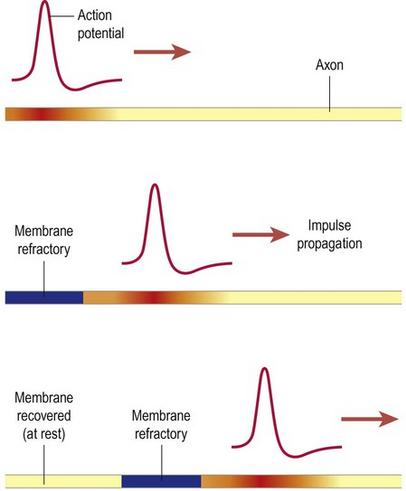

propagation of an action potential

what's myelin?

​​​ 5. the resting polarized state is re-established when the membrane       potential returns to the voltage before the stimulus.

this is done by moving the ions (via a carrier protein) back to where they started... K+ inside and Na+ outside the cell.

muscarinic receptors are found at cholinergic synapses in the CNS and at postganglionic parasympathetic nerve terminals.

review question:

what is meant by the membrane potential of a cell? how is membrane potential quantified?

review question:

will ANY stimulus trigger an action potential? explain.

5. the cell regains its
polarized state =|resting potential

adrenergic receptors (adrenoceptors) are metabotropic. they bind catecholamines such as
norepinephrine/noradrenaline and
epinephrine/adrenaline.

speaking of neuromodulation...
presynaptic inhibition by GABA

excitatory neurotransmitters initiate a post synaptic action potential by causing depolarization of the post synaptic cell producing an
EPSP = excitatory postsynaptic potential.
inhibitory neurotransmitters cause the post synaptic cell to hyperpolarize therefore suppressing an action potential producing an
IPSP = inhibitory post synaptic potential.
remember...
it is NOT the neurotransmitter that determines how the post synaptic cell will respond but rather the post synaptic receptor of that neurotransmitter.

temporal vs spatial summation
a single excitatory post synaptic potential (ESPS)  (0.5mv)won't provide enough stimulation to reach threshold generating an action potential but individual ESPSs can combine to reach threshold. This can occur 2 ways...

spatial summation = multiple presynaptic neurons release enough neurotransmitter to reach threshold
temporal summation = one presynaptic neuron releases neurotransmitter many times over a period of time to reach threshold

review question:

explain how the membrane potential of a cell is altered.

other neurotransmitters and their functions

review question:

what are the three types of chemical synapses?

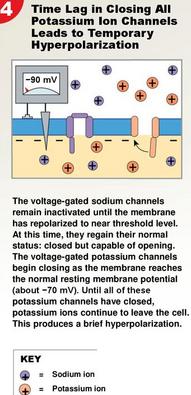

​​​  4. hyperpolarization is caused by the efflux of K+ ions and closing          of the K+ channels.

2. a shift from this resting potential towards a less negative potential occurs = depolarization

​
Myelin is interrupted at gaps called the nodes of Ranvier, where action potentials jump from one node to the next (saltatory conduction).
This jumping mechanism allows for even faster signal transmission compared to continuous conduction along unmyelinated axons.

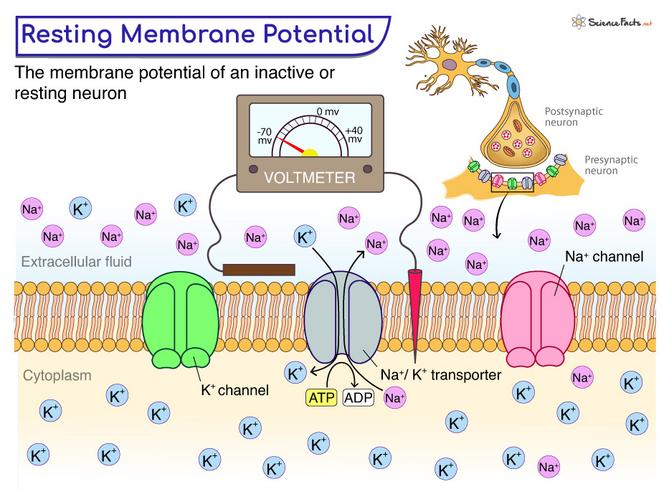

resting membrane potential =
cell is inactive at the moment

how does a nerve impulse work?

 amino acids

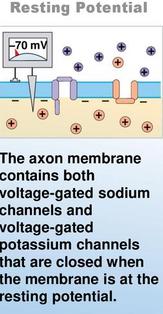

1. a cell at rest has a resting potential of -70mv and is said to be polarized.
a stimulus triggers action potential

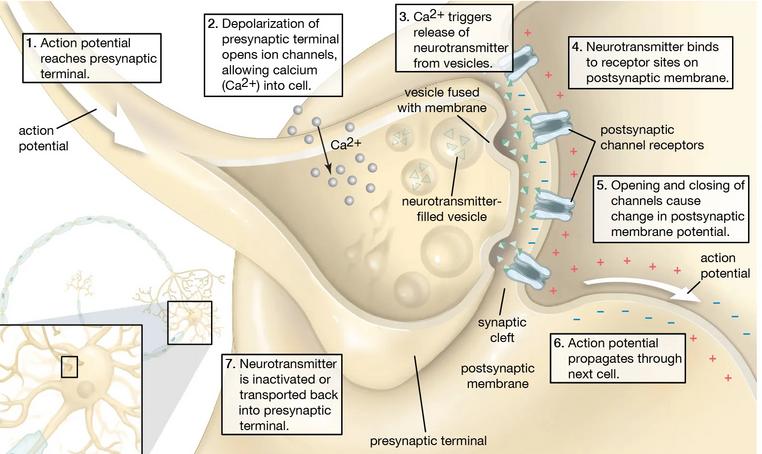

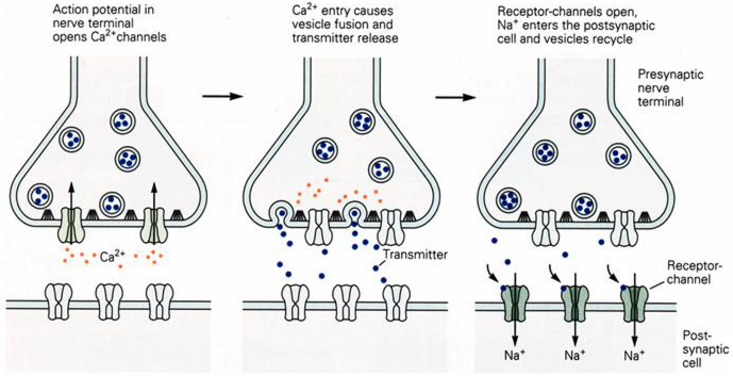

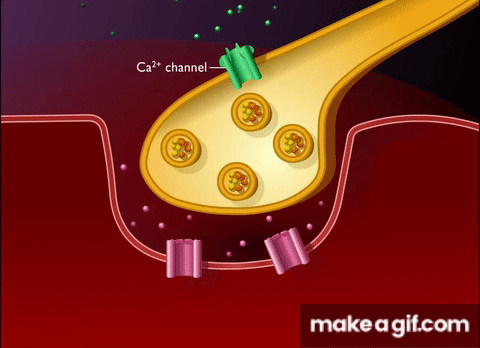

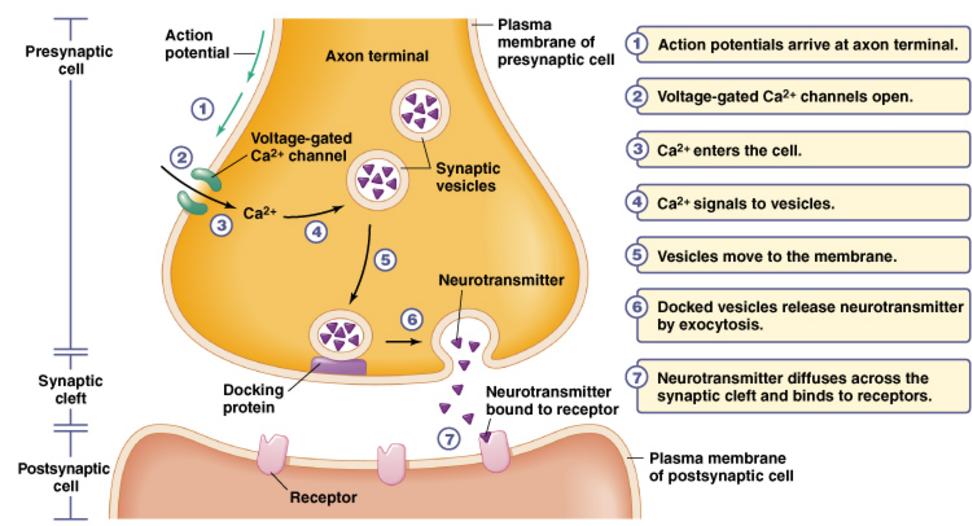

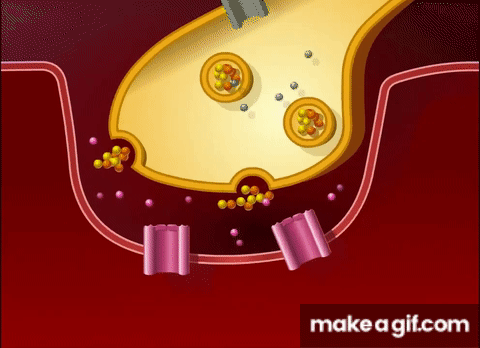

a chemical synapse is a gap between cells where a nerve impulse is relayed
chemically by neurotransmitters.
chemical synapses are found at:
a. junctions between two neurons
b. between neurons and muscles (neuromuscular junction)
c. between neurons and glands (neuroglandular junction)

Myelin increases the speed of nerve impulses:
faster movement, reflexes, and cognitive functions.

4. an increase in the negativity of the resting potential = hyperpolarization

(kind of like an overcompensation)

let's look at the synapse

saltatory
​propagation along a myelinated axon travels 18-120 m/sec
(40-270 mph)

review question:

explain the relationship between myelin and saltatory propagation.

                     adrenergic receptors

nodes are 1-2 mm apart

producing a wave of depolarization...

​all nicotinic receptors are ionotropic (ligand-gated ion channels)
nicotinic receptors respond to drugs such as nicotine, an agonist.

the nerve impulse is called an action potential. it travels along the axon of a nerve cell.

Myelin acts like the plastic coating around electrical wires.

vs
presynaptic facilitation by serotonin
